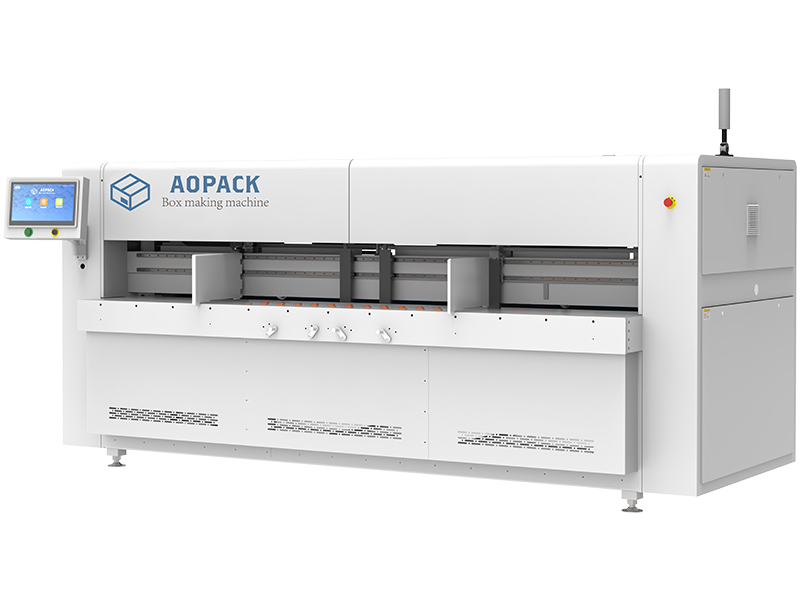

Box On Demand Machine BM2800-Max

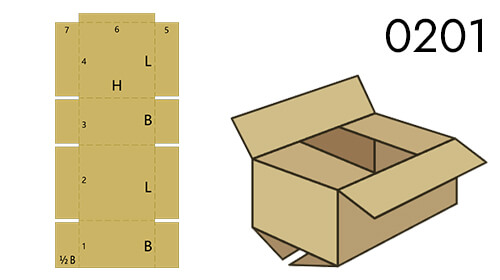

Box On Demand Machine is a machine designed for the production of cardboard boxes. BM2800-Max is very easy to operate and adjust. The machine can produce over 100 different types of boxes, including 0411, partitions, trays, 0201, pallet boxes and more.
Board Feeding, Slotting, Scoring, Creasing, Slitting, Trimming, and Vibrating Knife Cutting can all be done in one quick pass on this compact machine.
Box On Demand Machine Highlight
Male & Female Double-sided Creasing
Carton flaps Inward and outward folding without burst.
Oversized Large Box
RSC box maximum height is 2500mm; Max. cardboard with 2800mm and unlimited length.
Quick Changeover Time
Independent motor control, appr. 1-6s quick changeover time.

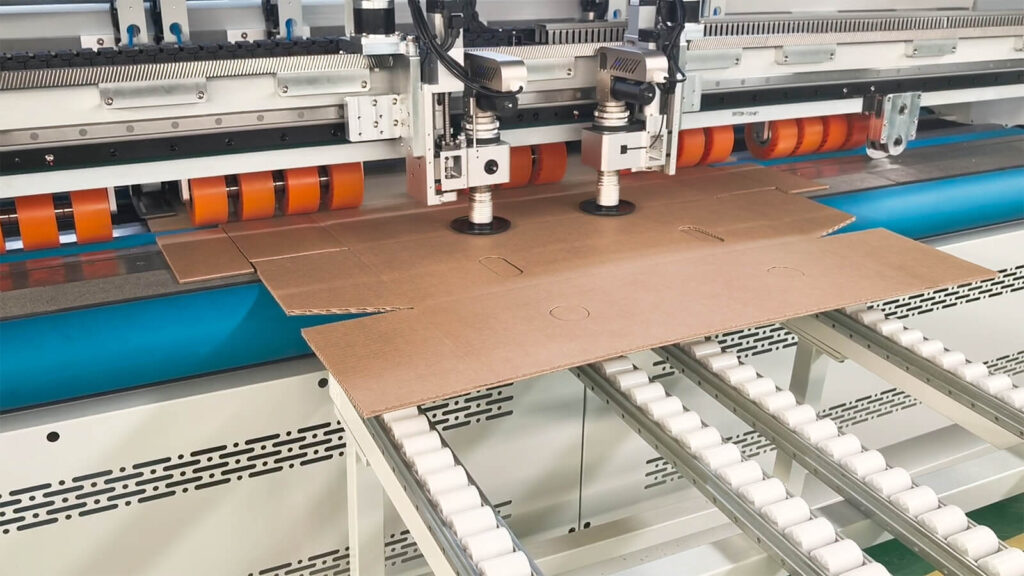

Vibration Knife Cutting (Optional)
Import CAD file, vibrating knife cutting irregular shape, No mould needed
Multifunctional Machine
Inconsistent creasing, customized box style, commercial pads slitting
Easy for Short Run Boxes Production
Slotting, Slitting, Creasing, Trimming, Vibrating Knife Cutting (Optional), Gluing (Optional)
Box On Demand Machine Finished Boxes

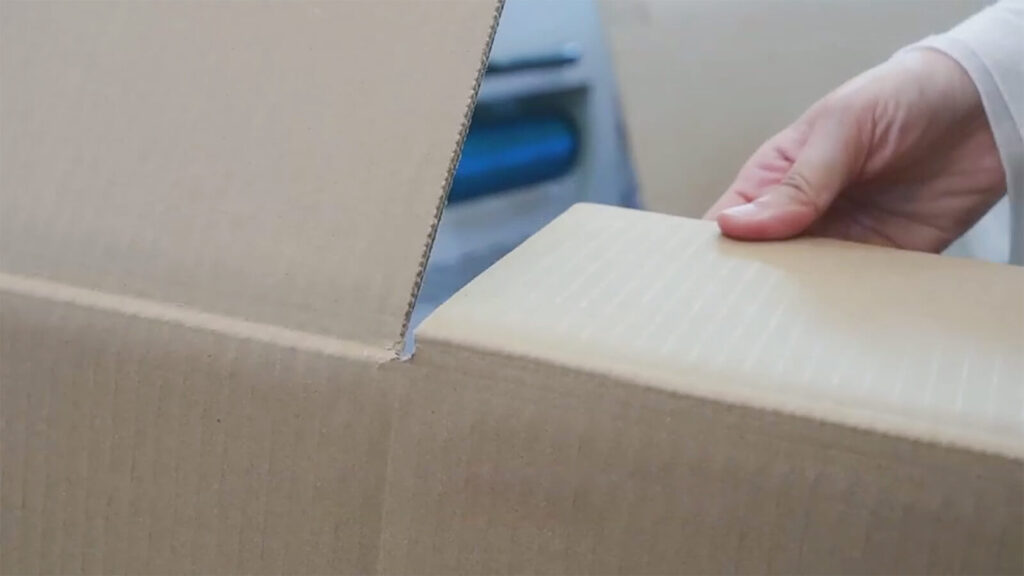

Male & Female Double-sided Creasing
Vibrating Knife Cutting Irregular Shapes

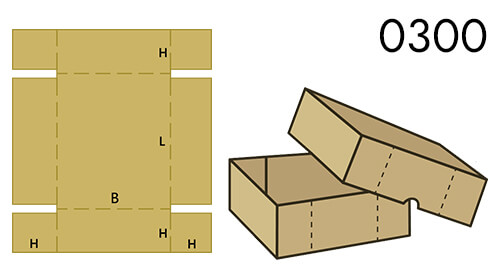

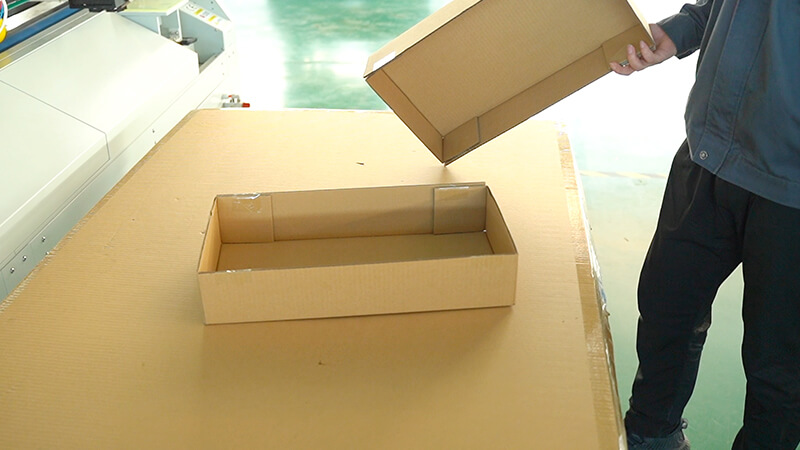

Fefco 0300 TeleScopic Boxes

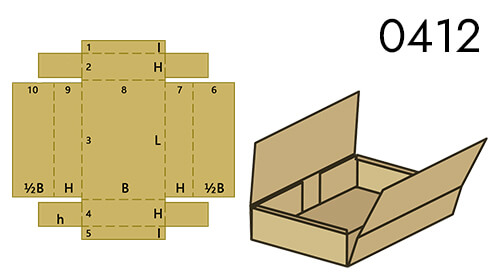

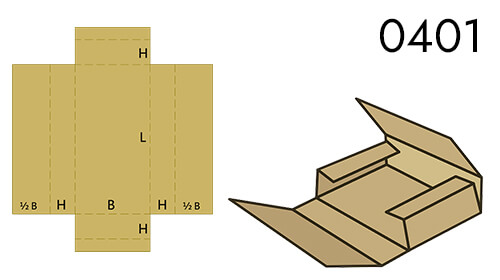

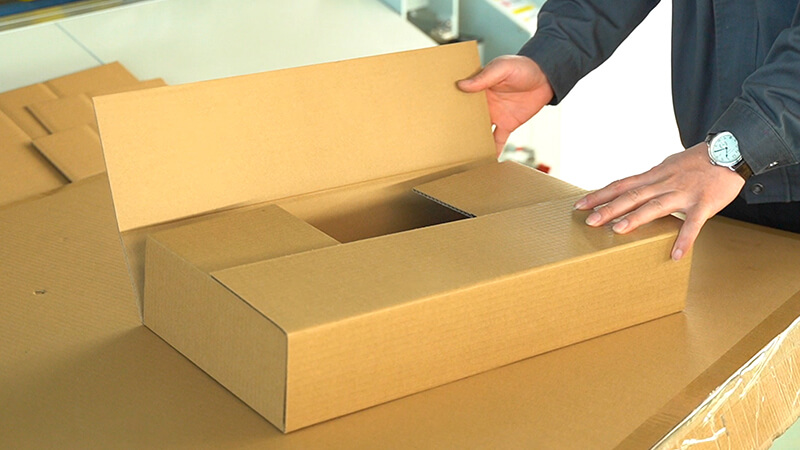

Fefco 0402 Folder Type Boxes

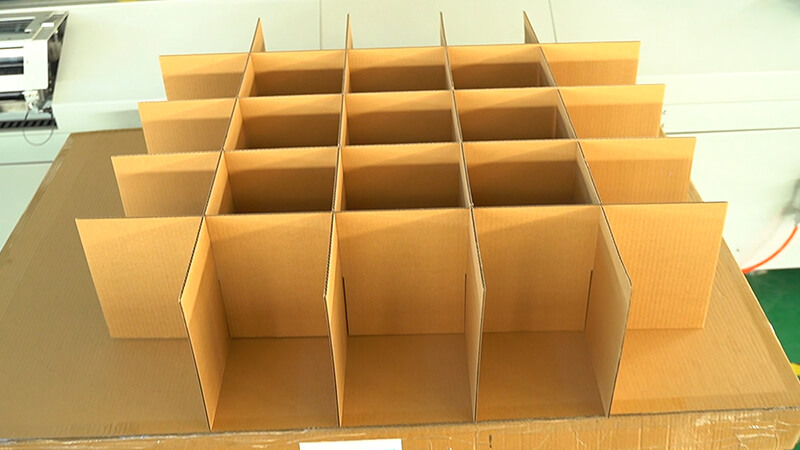

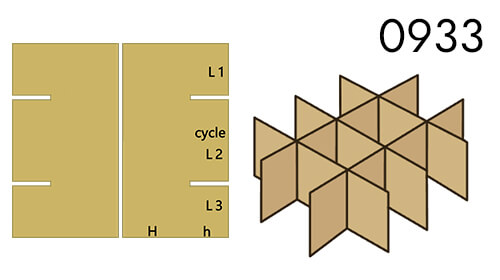

Fefco 0933 Interior Fitments

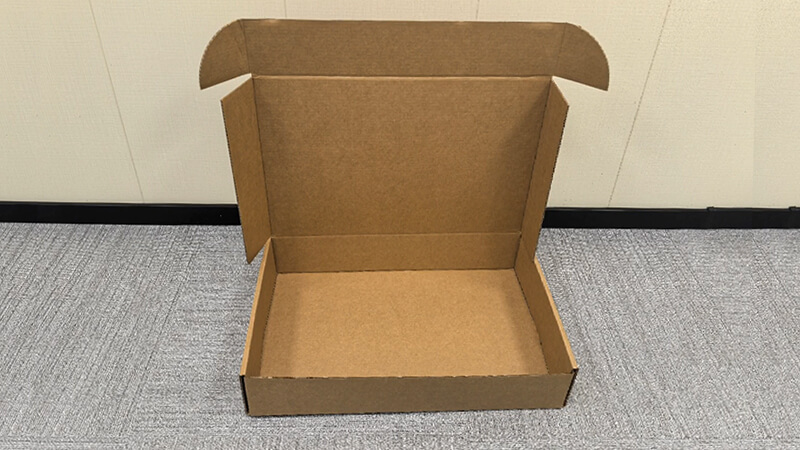

Self Locking Box

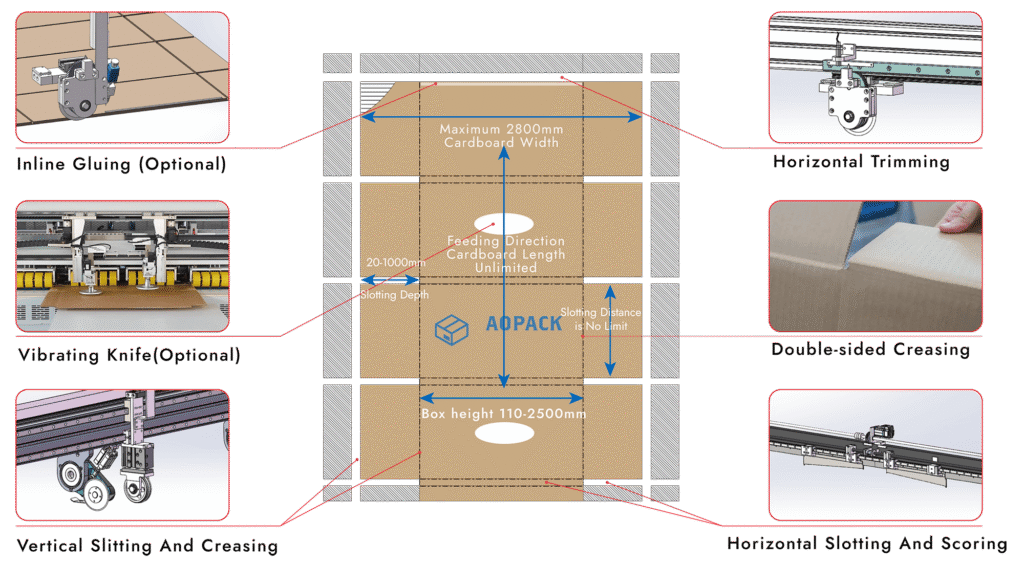

Box On Demand Machine One Stop Solution

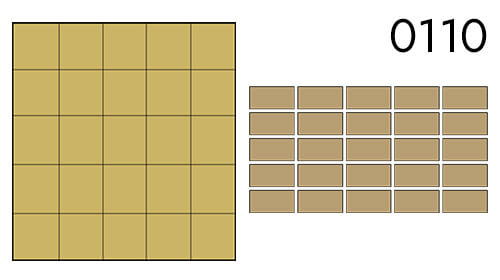

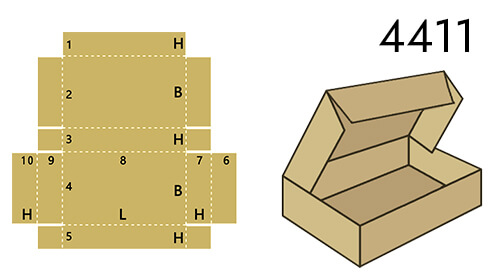

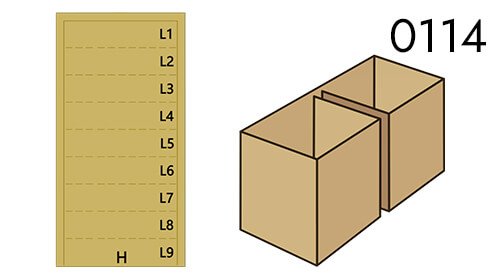

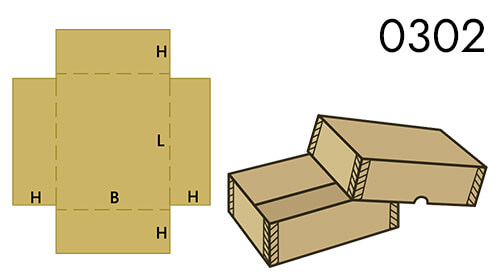

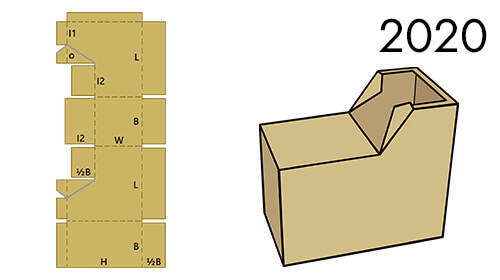

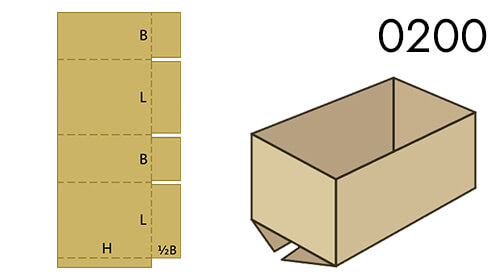

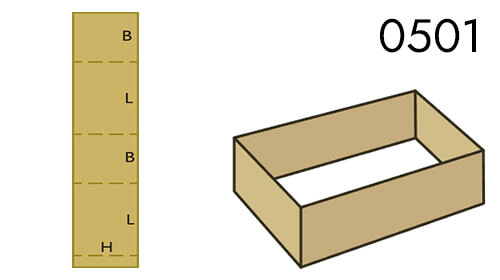

Box On Demand Machine Box Styles

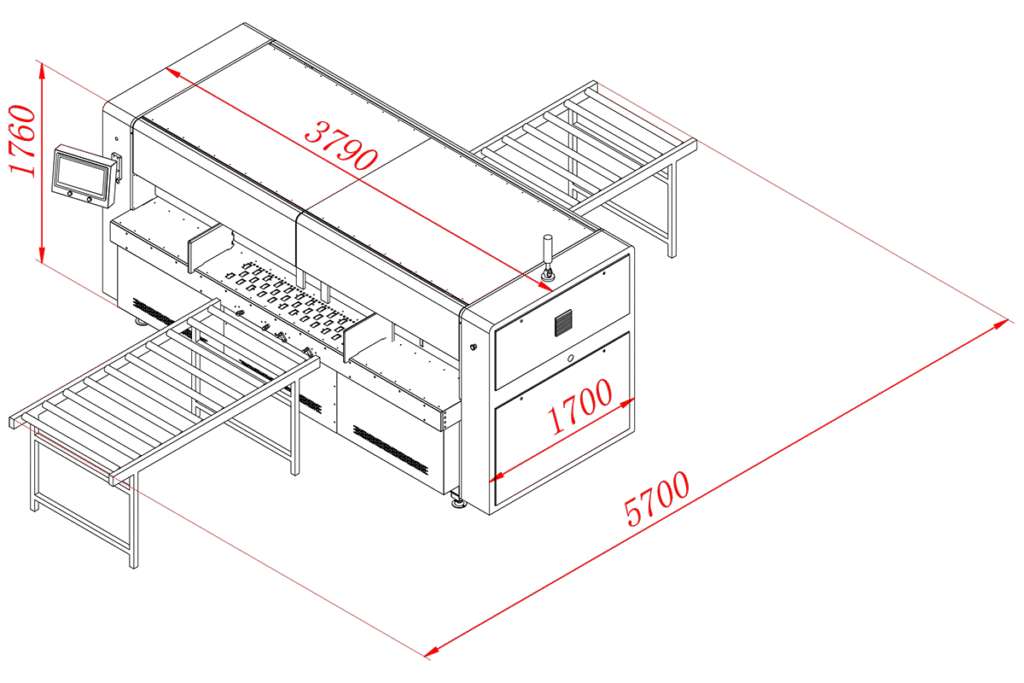

BM2800-Max Machine Layout
Work area width of 5 meters
Work area length of 6 meters
Min. indoor floor height is 2.4 meters
Box On Demand Machine Technical Data
| Cardboard | Min. Size | 260 * 680mm | Machine Efficiency | Production Capacity | Appr. 8~15pcs/min |
| Max. Size | 2800mm * Unlimited Length | Order Changeover Time | Appr.1～6s | ||
| Cardboard Thickness | 2-12mm | Slitting/Creasing | Vertical Slitting Knife Qty | 6 | |
| Cardboard Weight | ≤1200g/㎡ | Creasing Wheel Qty | 6 | ||
| Finished Box | Min. Slitting Size | 60mm * 50mm | Min. Slitting Distance | 25mm | |
| Min. Box Size | 50mm(W)*50mm(L)*110mm(H) | Min. Creasing Distance | 25mm | ||
| Min. Creasing Distance (Thinnest Box) | 25mm | Special Creasing | Inconsistent Creasing | Available | |
| Min. Box Height (Min. Slotting Distance) | 110mm | Concave and convex Creasing | Available | ||
| Max. Box Height (Max. Slotting Distance) | 2500mm | Special Cutting | Vibrating Knife | Optional | |
| Max. Box Length | Unlimited | Machine Data | Weight | Appr. 3200kg | |
| Slotting | Slotting Knife Size | 2 * 500mm | Automatic Board Feeding | Leading edge feeding | |
| Slotting Knife Thickness | 7mm | Air Consumption | 75L/min | ||
| Slotting Length | 20～1000mm | Power | Appr. 8kW | ||
| Machine Size | 3760(W)*1700(L)*2030(H)mm | ||||
We provide a wide range of box making machines to meet the needs of your business
