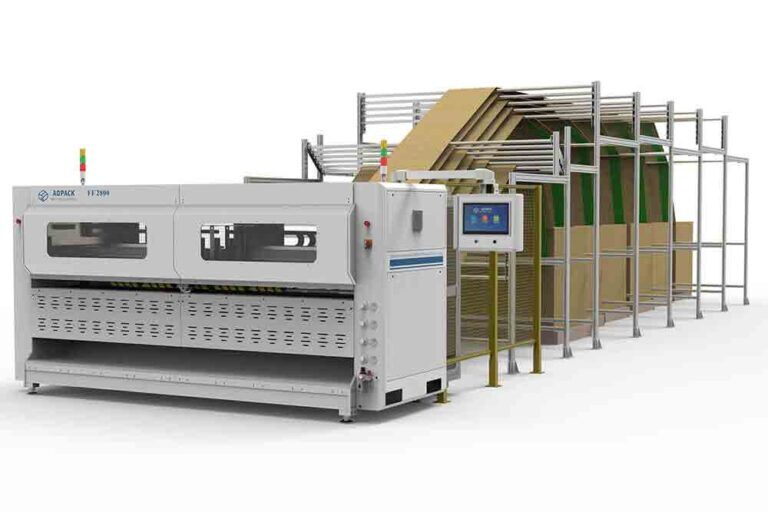

Fanfold Machine FF2800

ANYBOX fanfold machine FF2800 is a new generation product. This machine is available to use a of maximum 6 different fanfold sheets to produce corrugated boxes, with multiple functions, slotting, scoring, creasing, slitting, and trimming, all processing in one compact machine.

FF2800 provides one-stop carton solutions for customized product packaging, allowing box users to realize box freedom, self-sufficiency, production at any time, and packaging accompanying production.

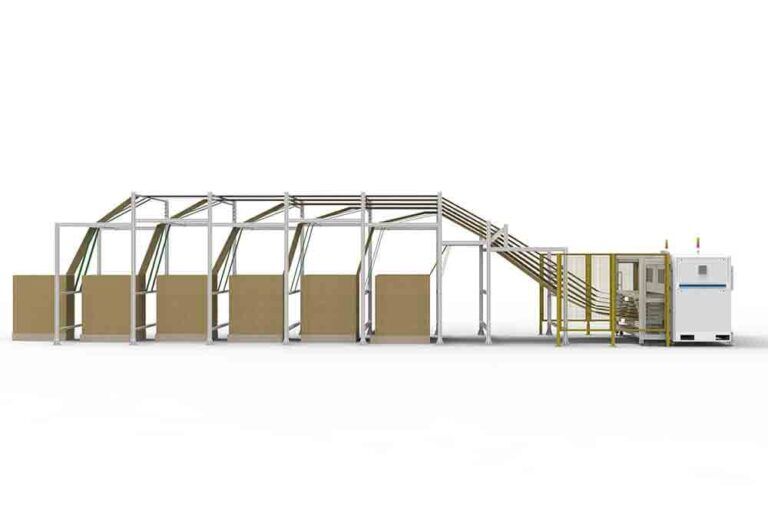

Fanfold Cardboard Box Making Machine FF2800 Layout

L*W*H: 14.5m*3.7m*2.9m(Box making machine with six fanfold board stacks);
L*W*H: 3.7m*1.2m*1.78m (Box making machine)

Fanfold Cardboard Box Making Machine FF2800 Layout
Fanfold Cardboard Box Making Machine FF2800 Layout

Fanfold Machine FF2800 Specification

Available Cardboard TypeSheet or Fanfold (3 / 5 / 7 Ply)
Available Cardboard Thickness1.5-10mm  (E / B / C / AB/ BC / BE / BCE flute)
Cardboard Density Range≤1350g/㎡
Max. Board Size2800mm(W) x unlimited(L)
Min. Board Size500mm(W) x 650mm(L)
Changeover Time1-5 Seconds
Accuracy±2mm
Box Styles50+
Production Speed (Same Dimension)6-12pcs/min
Production Speed (Different Dimension)3-6pcs/min
Vertical Creasing Wheels6
Vertical Slitting Knives6
Horizontal Cutting Knives1 or 2
Power Supply380V±10%, Max.5.5kW, 50/60Hz
Air Supply0.6-0.7 MPa, Air Consumption 70L/min
Dimension3700(W) x 1200(L) x 2030mm(H)
Gross WeightAppr. 3100kg
Corrugated Bales1-6
The final interpretation right belongs to Qingdao Anybox on Demand Packaging Co., Ltd.

Major Functions Of Fanfold Machine FF2800

Major Functions Of Fanfold Cardboard Box Making Machine FF2800

Cardboard Feeding

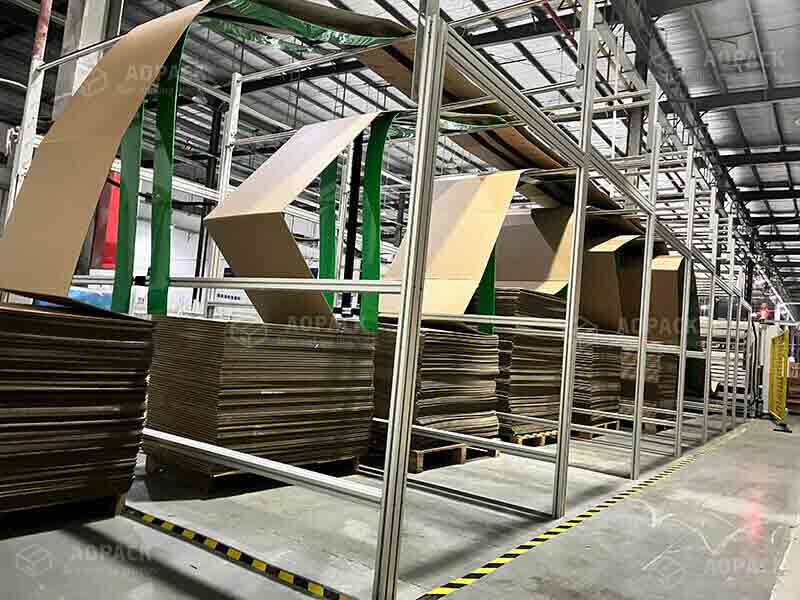

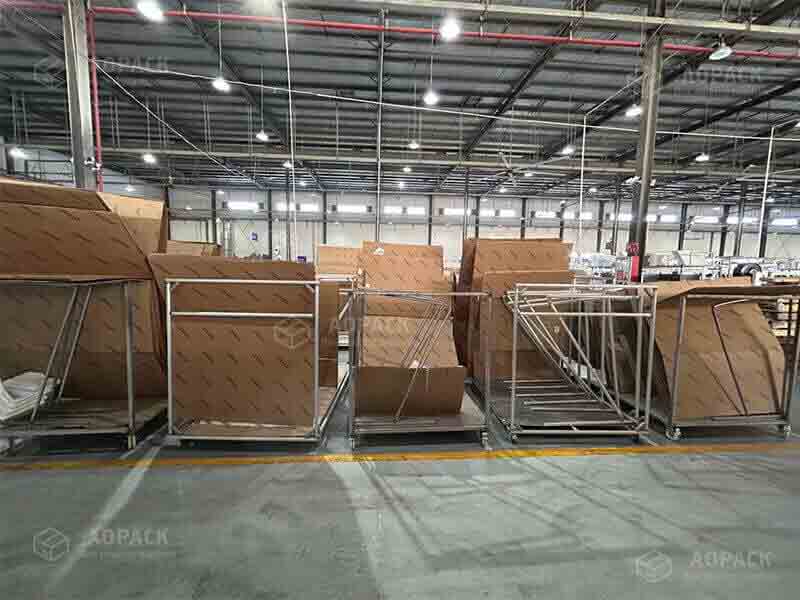

  • Fanfold board stacks quantity: 1-6;
  • Automatically select cardboard
Major Functions Of Fanfold Cardboard Box Making Machine FF2800

First Cross Cutting

  • Cut cardboard length as required;
Major Functions Of Fanfold Cardboard Box Making Machine FF2800

Slotting & Scoring

  • Used for slotting and scoring
Major Functions Of Fanfold Cardboard Box Making Machine FF2800

Creasing & Cutting

  • 4-8 slitting and creasing integrated knives;
  • Every knife is driven by an independent motor
Major Functions Of Fanfold Cardboard Box Making Machine FF2800

Second Cross Cutting

  • Cut cardboard length as required;
Major Functions Of Fanfold Cardboard Box Making Machine FF2800

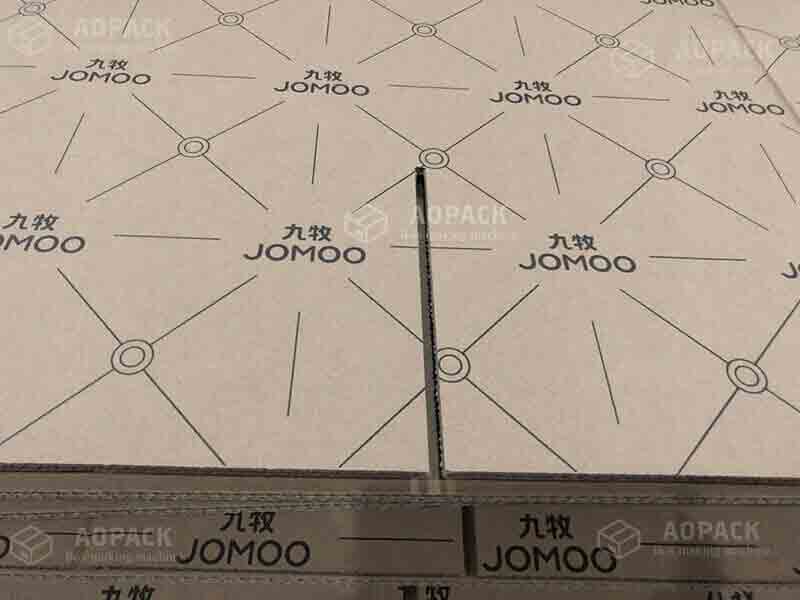

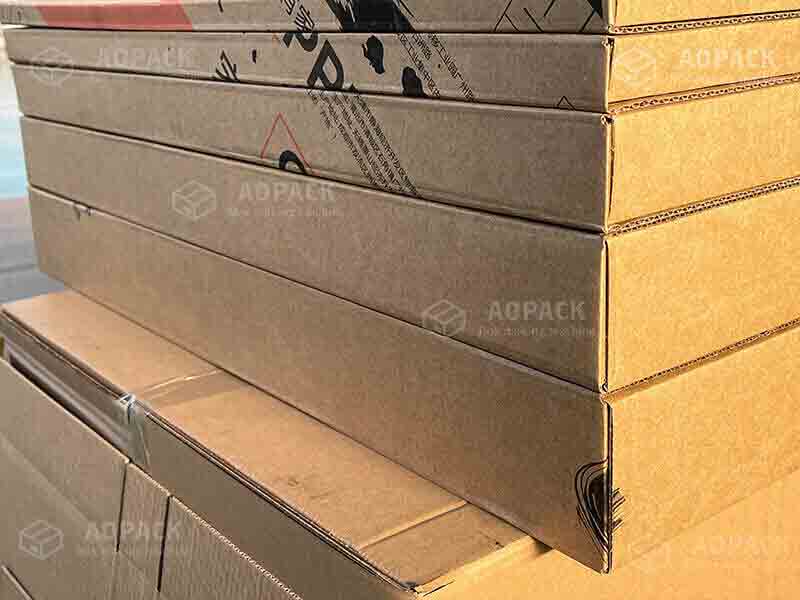

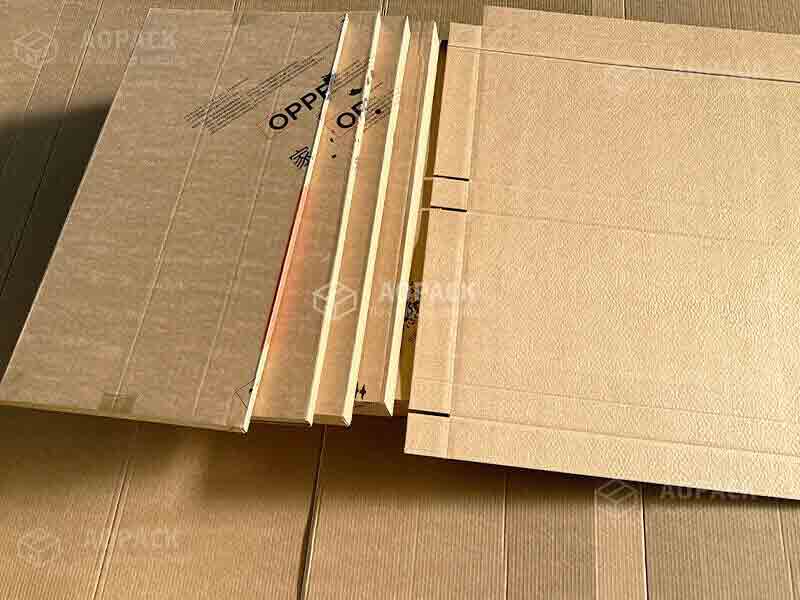

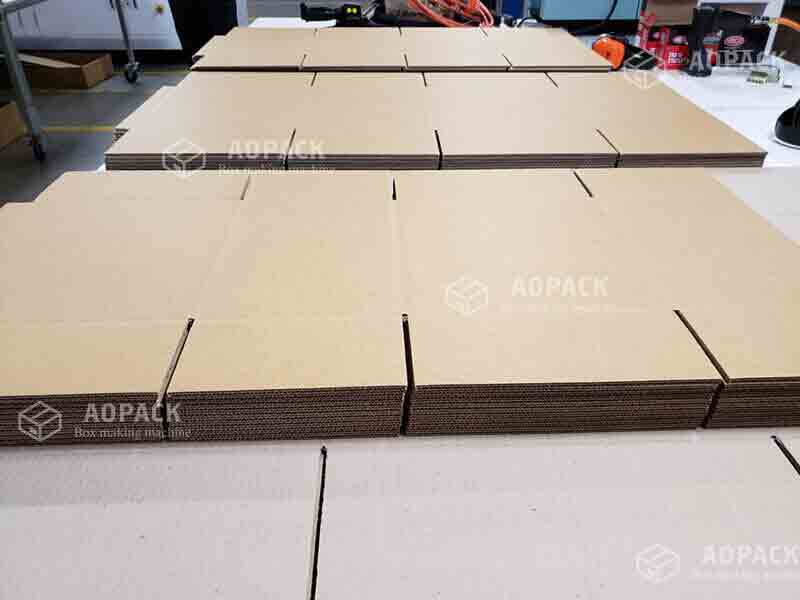

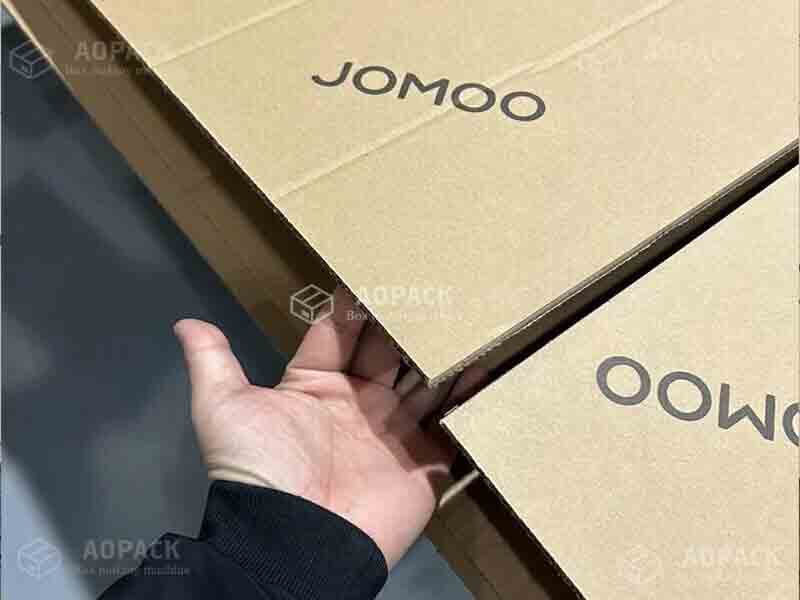

Final Product

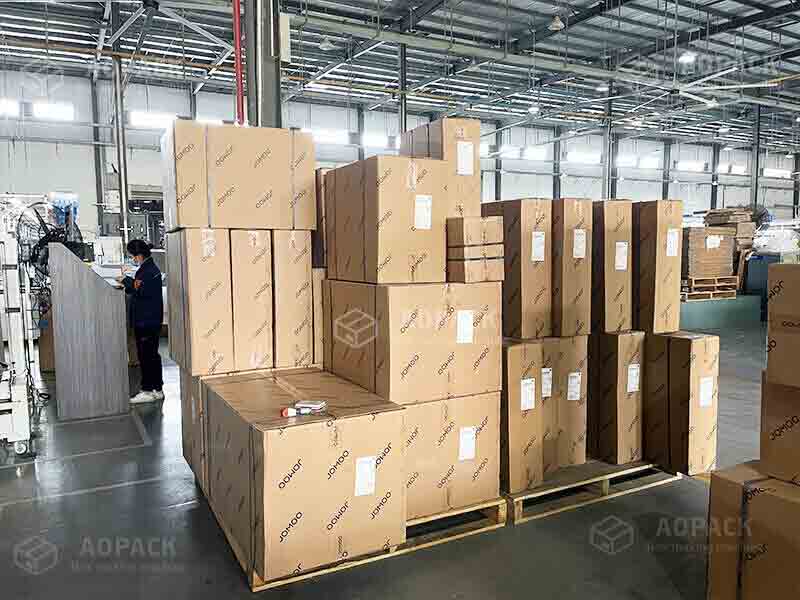

  • With FF2800, you can make cartons of the size you need at any time

Anybox FF2800 Fanfold Machine Basic Box Styles

Aopack FF2800 Basic Box Styles

FF2800 Fandfold Machine Operation System

  • Self-designed operating system, free of charge for customers to add new box type, docking scan code, MES, ERP and other services;
    Provide order processing software to realize functions such as automatic
  • processing and form import;
  • Adopt a 15.6-inches super large touch screen, good visual effect,s and convenient operation;
  • Just select the box type and input the size to process the carton directly.

Fanfold Machine FAQ

Service will be online, we have a full set of manuals, instructions, and guide videos for installation. During Covid, we have guided many customers to get the machine done by themselves. This machine is not complicated, easy to install and put into production within one day. There is also online training for your operators.

Yes, our BM2508 Plus machine can provide an optional hand hole punching module.

The normal delivery time is 20 days from deposit, if it is a legal holiday, it will be postponed accordingly.

Consumable parts that usually suggested is slitting knife and fiber comb, which needs to be replaced every six months or a year.

We offer one year of warranty from the date of installation.

We have the CE certification, and the third-party inspection company SGS provides inspection services.

Yes, when there is a program update, we will inform our customer of the programming update.
