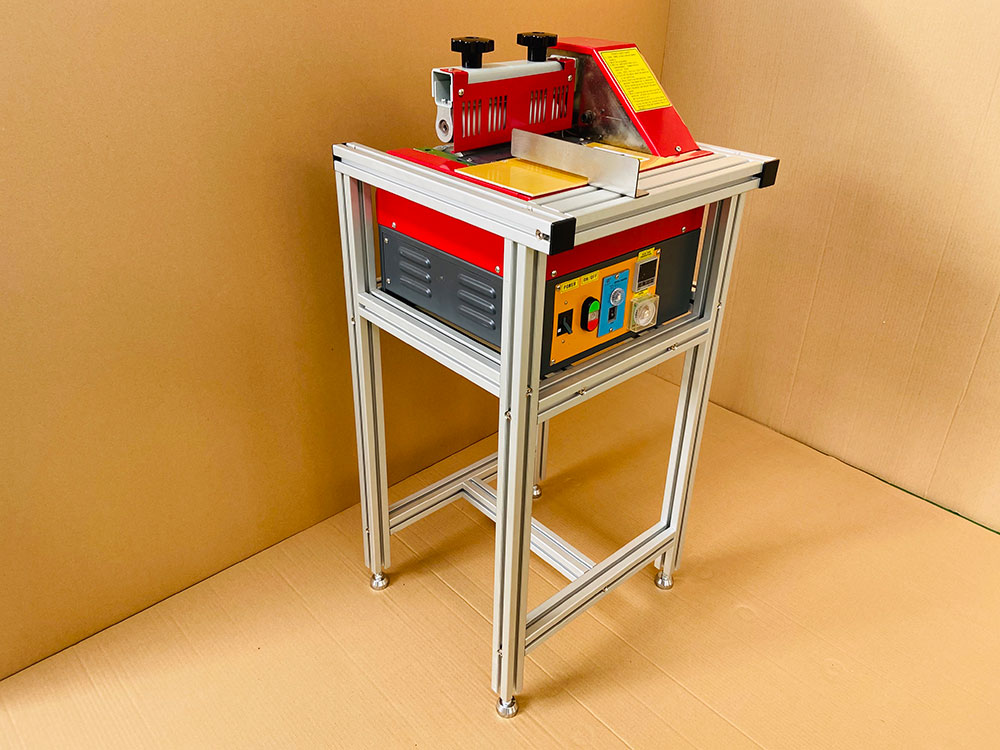

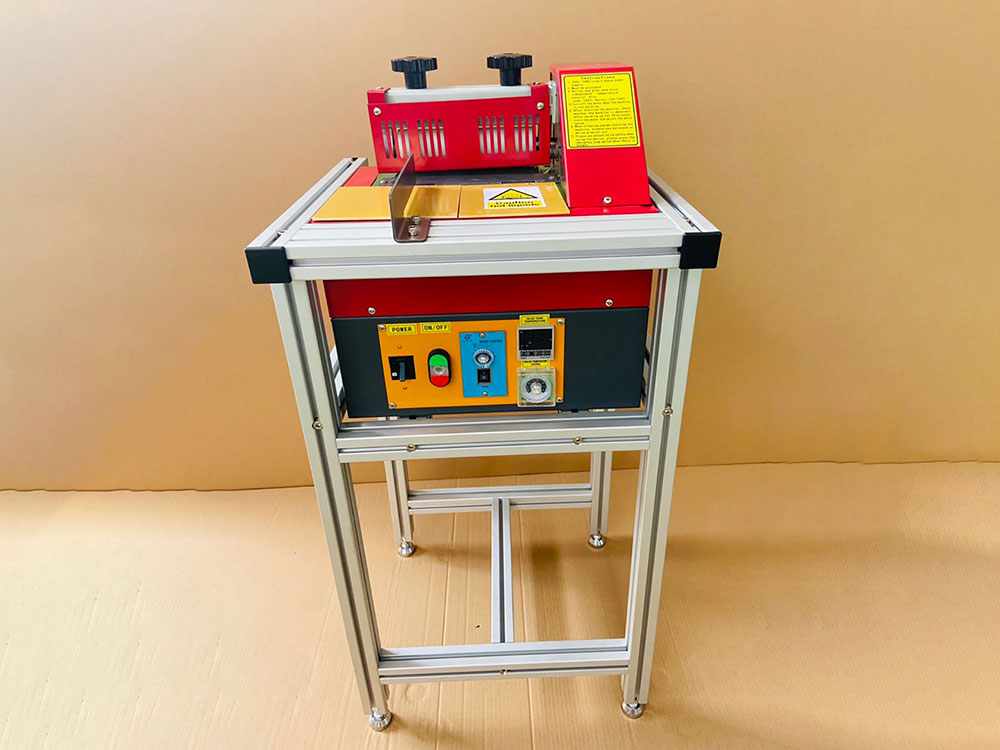

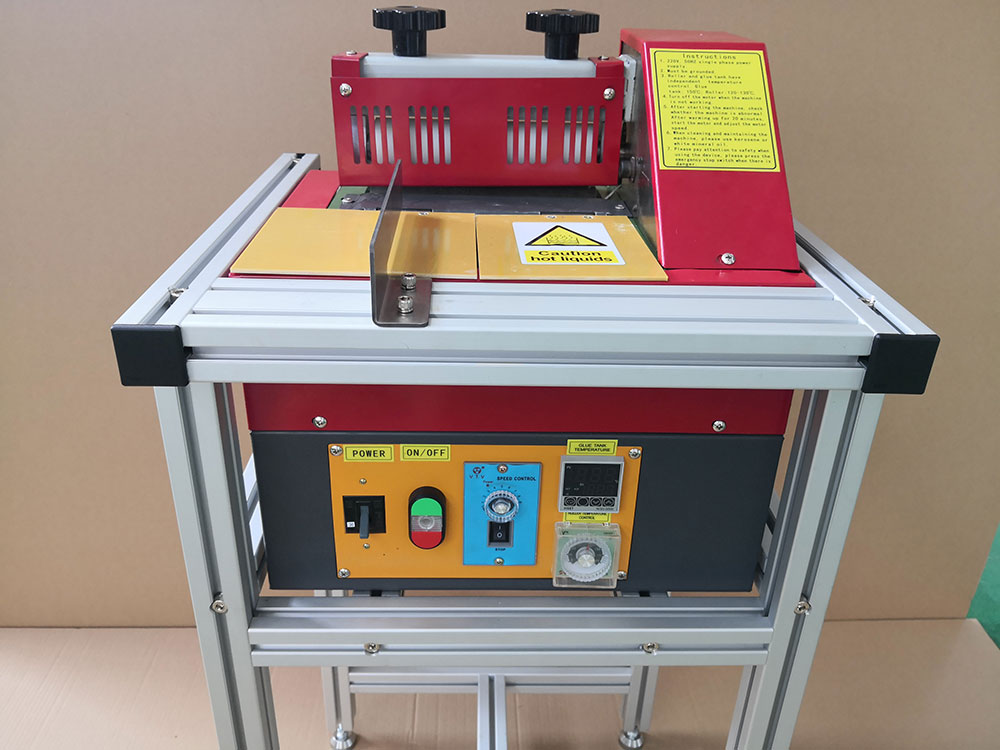

Hot Melt Glue Machine 200 – HMG200
The Hot melt glue machine 200 is designed and manufactured for the complement of ANYBOX world-leading short run box making machine BM2508-Plus. The HMG200’s simple-designed structure provides quick and efficient processing of generally any size of corrugated boxes.
Eliminating the need to pick up heavy glue guns frequently, the pre-melt offers significantly faster processing whilst reducing the risk of injury. By using hot-melt granules, it is easy to accomplish a consistent amount of glue to every box. As a result, the raw material costs and the amount of glue used are greatly reduced.
How to Use
A proper amount of hot-melt adhesive is applied to the exactly whole surface of the glue flap, creating the best contact surface giving excellent adhesion all the time.

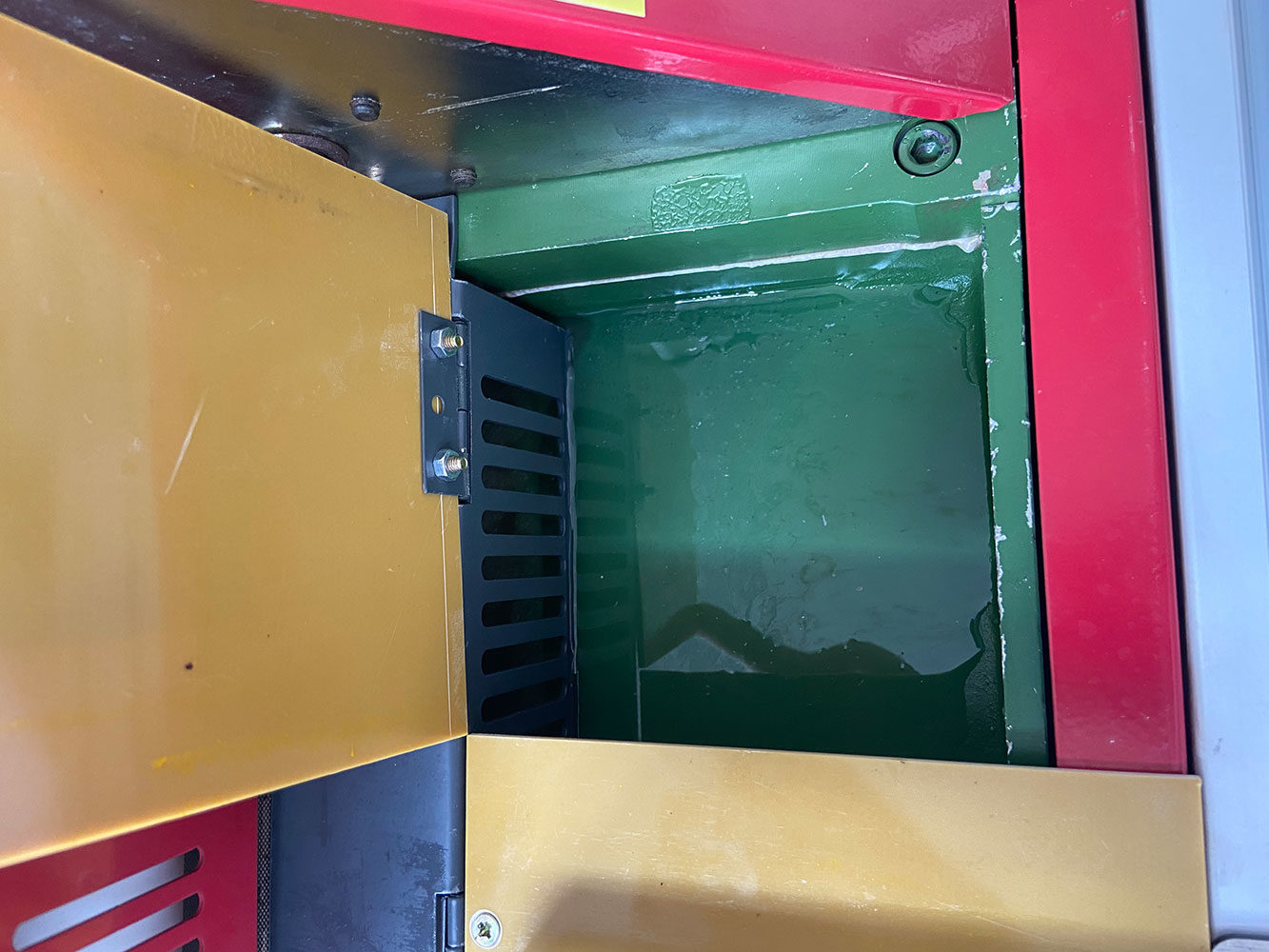

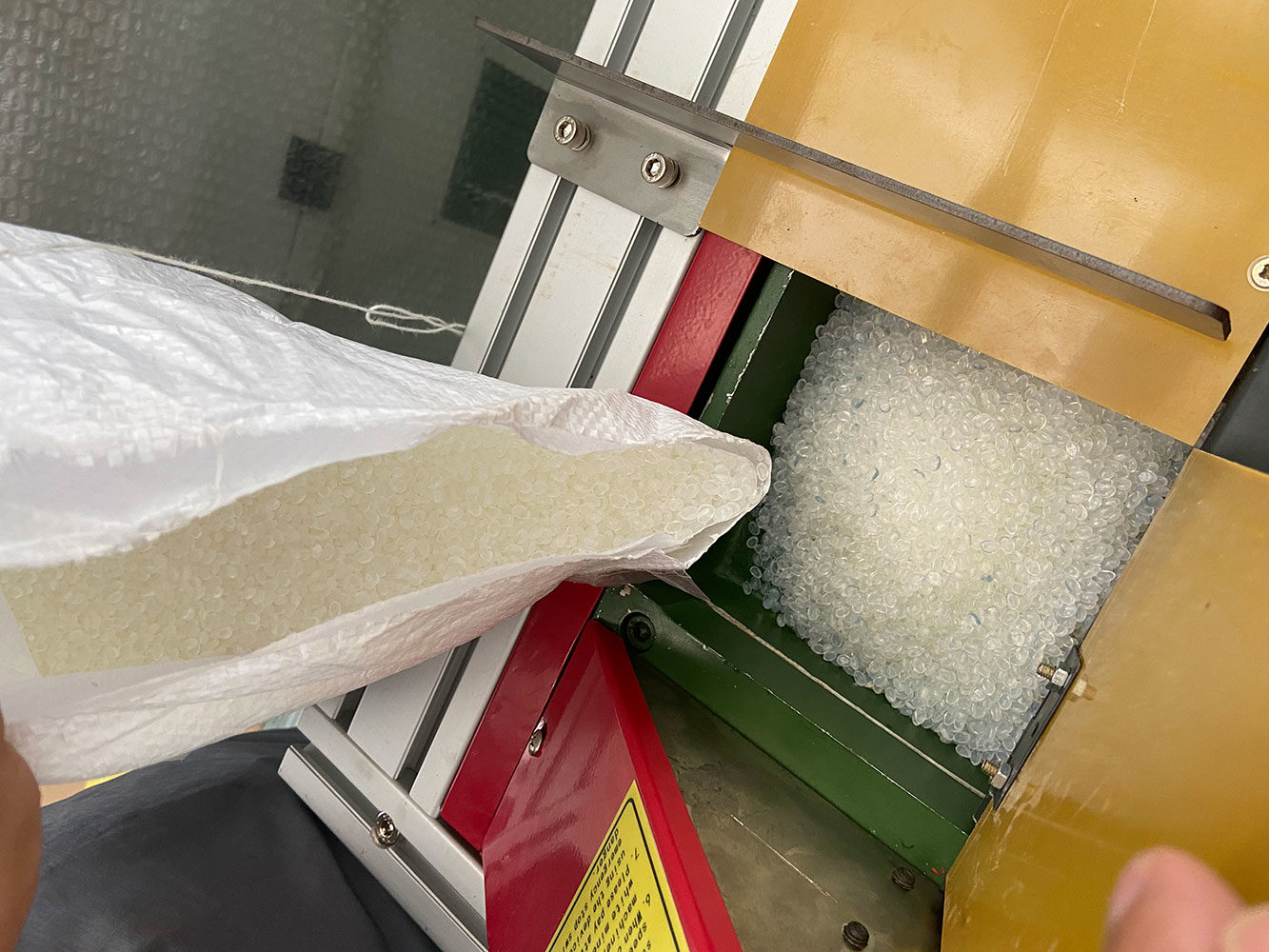

The glue tank heats the hot melt granules, which can provide a constant supply of glue to the spinning wheel, only need for regular refilling, allowing for quick, continuous processing.
Main Function
- Hot melt glue applicator

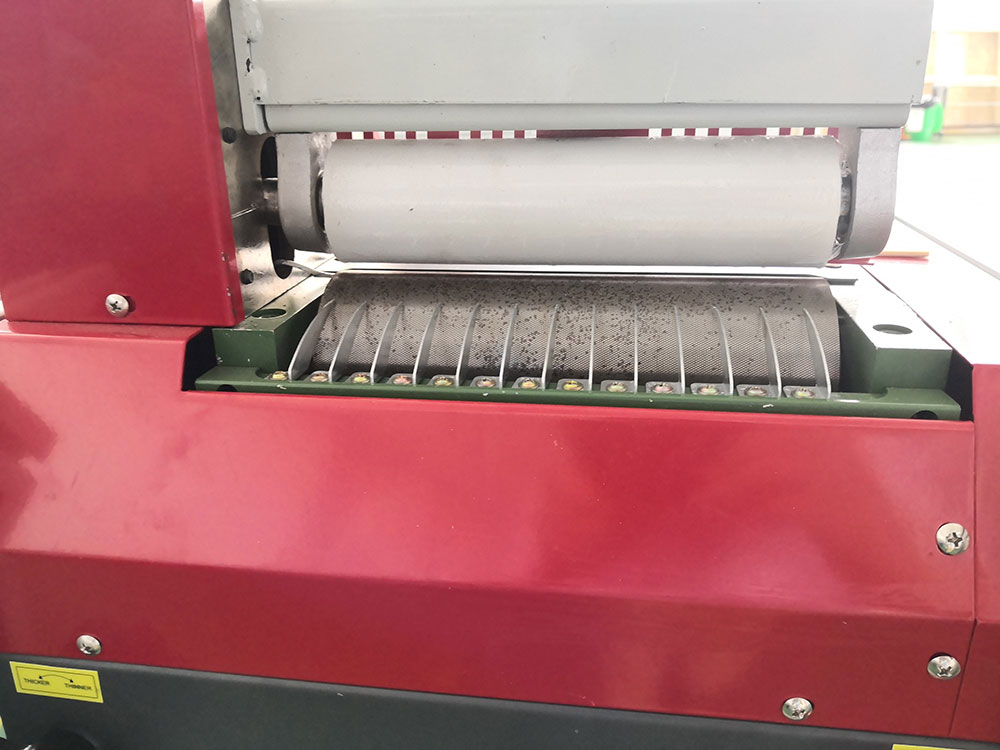

- Up to 200mm glue width
- For all sizes of boxes

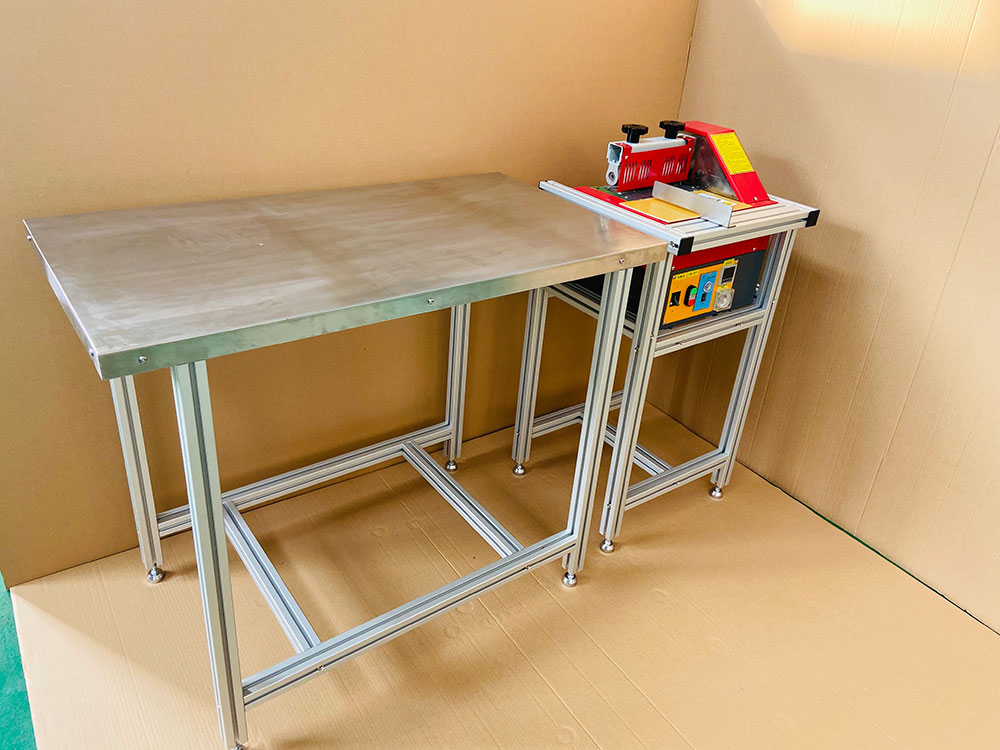

- Comfortable height for operation
- Faster than hot-melt glue gun
- Reduce glue costs by up to 50%
Hot Melt Glue Machine Specification
| Power Supply | 220V±10% |
| Motor Power | 60W |
| Heating Power | 1500W |
| Glue Width | Up to 200mm |
| Melting Speed | 2Kg/h |
| Glue Viscosity | 1000-20000 CPS |
| Operating Temperature | ≤250℃ |
| Cardboard Thickness | 0.7-20mm |
| Glue Container Volume | 2L |
| Dimension | 500(W) * 485（L）* 1080mm(H) |
| Gross Weight | Appr. 50Kg |
Service will be online, we have a full set of manuals, instructions, and guide videos for installation. During Covid, we have guided many customers to get the machine done by themselves. This machine is not complicated, easy to install and put into production within one day. There is also online training for your operators.
Yes, our BM2508 Plus machine can provide an optional hand hole punching module.
The normal delivery time is 20 days from deposit, if it is a legal holiday, it will be postponed accordingly.
Consumable parts that usually suggested is slitting knife and fiber comb, which needs to be replaced every six months or a year.
We offer one year of warranty from the date of installation.
We have the CE certification, and the third-party inspection company SGS provides inspection services.
Yes, when there is a program update, we will inform our customer of the programming update.
